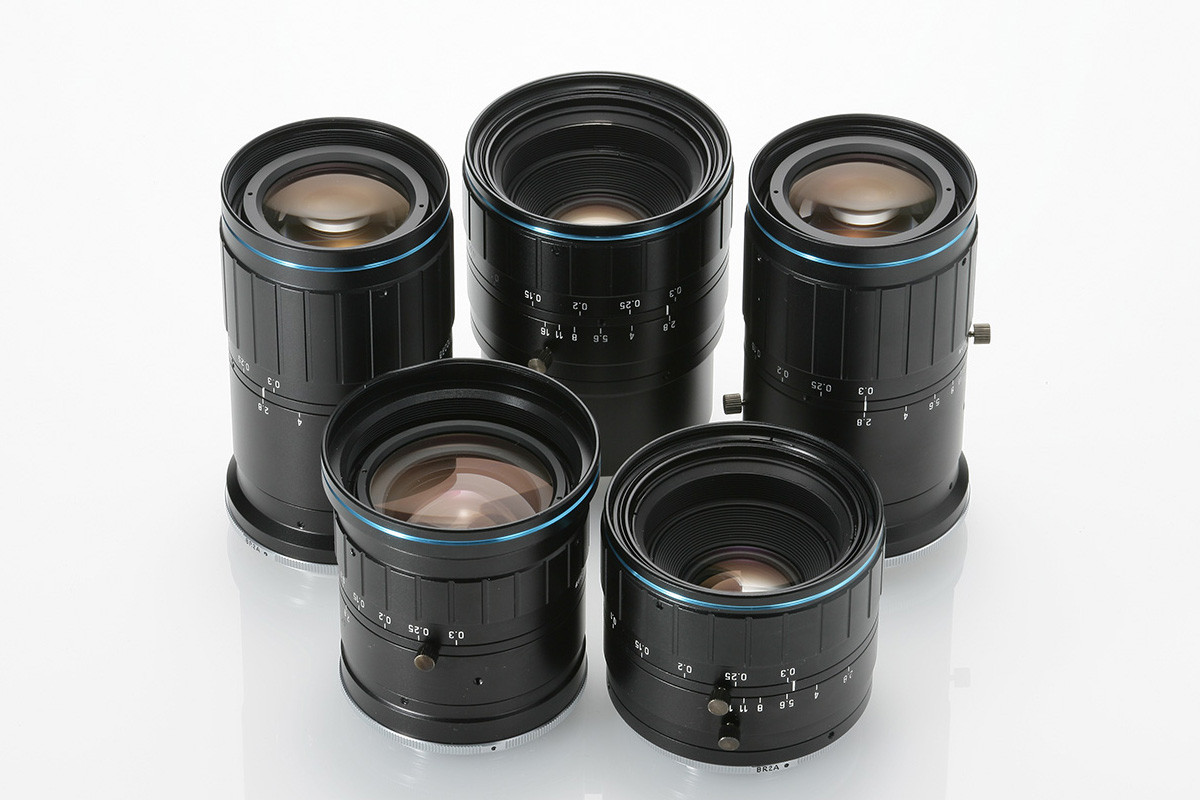

VS-L(F) Series

Line Scan Macro Lenses

VS TECHNOLOGY
  • Available: 2021.3 New model VS-L20040/F is available
  • Distortion: Distortionless
  • Focal Length: 18 - 200mm
  • Mount: F-Mount
  • Scan Application: There is a large range of focal lengths and supported sensors which make it a good choice for any line scan application
  • Support: 29 - 45mm sensor support
VS-L(F) Series
Codice variante Floating Focal Length mm Image Circle Mount Opti. Mag. Range Working F/# Pdf Spec
VS-L1828/F - 18 Φ29 F-Mount 0.025x-0.12x 2.9-3.2
VS-L2526/F - 25 Φ29 F-Mount 0.025x-0.12x 2.7-2.9
VS-L3528/F - 35 Φ45 F-Mount 0.05x-0.3x 2.8-3.5
VS-L3528LM/F - 35 Φ45 F-Mount 0.02x-0.12x 2.9-3.2
VS-L5018FL/F O 50 Φ45 F-Mount 0.05x-0.14x 2.0-2.2
VS-L5028/F - 50 Φ45 F-Mount 0.05x-0.3x 3.1-3.8
VS-L8540/F - 85 Φ50 F-Mount 0.1x-0.35x 4.4-5.4
VS-L10028/F - 100 Φ45 F-Mount 0.05x-0.3x 3.2-4.0
VS-L18556/F - 185 Φ45 F-Mount 0.108x-0.159x 7.1-7.4
VS-L20040/F - 200 Φ35.2 F-Mount 0.32x-1.0x 4.6-5.9
