VS-L(V) Series

8K, 12K & 16K Line Scan Macro Lenses

VS TECHNOLOGY
  • Distortion: Distortionless
  • K: Up to 2K, 12K, & 16K
  • Models Available: 13
  • Mount: Variable mounts
  • Sensor: Up to 90mm sensors
Leaflet

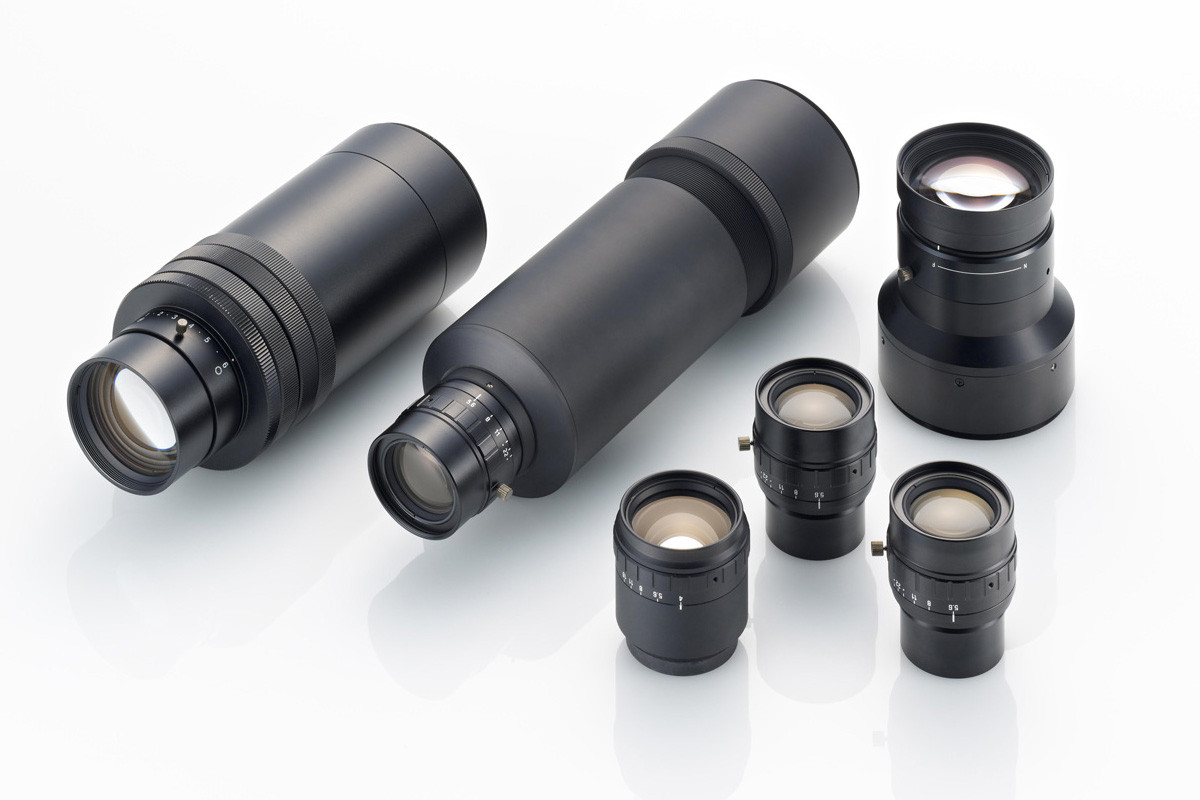

VS-L(V) Series

The VS-L(V) series is especially designed for large sensors up to 90mm in length, With integrated vibration resistance, a large selection of various mount adapters, high resolution, and high contrast it is an exceptionally excellent choice for any line scan application.

Codice variante Focal Length mm Image Circle Mount Opti. Mag. Range Product Working F/# Pdf Spec
VS-L5045FL/M72S 52.5 Φ75 M72 P=0.75 (∞）0.03x~0.15x - 4.7-5.3
VS-L7528/M72-31.8 75 Φ73 M72 P=0.75 (∞）0.05x~0.2x - 3.0-3.4
VS-L8528LM/M72 85 Φ62 M72 P=0.75 0.05x - 0.2x - 2.9-3.4
VS-L8528/M72 85 Φ62 M72 P=0.75 0.05x - 0.25x - 2.96-3.52
VS-L6035/V 60 Φ62 V-Mount 0.165x - 4.1
VS-L7540/V 75 Φ82 V-Mount 1.0x - 8.7
VS-L8540/V 85 Φ62 V-Mount 0.28x - 5.1
VS-L8540-06/V 85 Φ62 V-Mount 0.6x - 6.4
VS-L12056-03/V 120 Φ90 V-Mount 0.225x - 0.375x - 6.9-7.7
VS-L12056-05/V 120 Φ90 V-Mount 0.375x - 0.625x - 7.7-9.1
VS-L12056-075/V 120 Φ90 V-Mount 0.625x - 0.875x - 10.3-11.7
VS-L12056-1/V 120 Φ90 V-Mount 0.875x - 1.125x - 10.3-11.7
VS-L12035-05/V 120 Φ90 V-Mount 0.45x - 0.55x - 5.1-5.4
VS-L12035-075/V 120 Φ90 V-Mount 0.7x - 0.8x - 6.0-6.3
VS-L12035-1/V 120 Φ90 M67 P=0.75 0.9x - 1.1x - 12.1
VS-L12040-2/M67S 120 Φ90 M67 P=0.75 2.0x - 12.1
VS-L12040-2.5/M67S 120 Φ90 M67 P=0.75 2.5× - 13.7
VS-L12028-3.3/M67S 120 Φ90 M67 P=0.75 3.3× - 12.6
VS-L12025-5/M67S 120 Φ86.4 M67 P=0.75 5.0× - 15.0
VS-LH/V - - V-Mount - Lens holder -
VS-LH/V2 - - V-Mount - Lens holder -
VS-FR20 - - V-Mount - Focus Ring -
VS-FR32 - - V-Mount - Focus Ring -
VS-FR20-53V/M72 - - V-Mount - Focus Ring -
VS-FR32-53V/M72 - - V-Mount - Focus Ring -
VS-EXR35/M72 - - V-Mount - Extension Tube -
VS-EXR65/M72 - - V-Mount - Extension Tube -
VS-MT-FB6.56 - - V-Mount - FB Conversion Adapter -
VS-MT-FB9.4 - - V-Mount - FB Conversion Adapter -
VS-MT-FB12.0 - - V-Mount - FB Conversion Adapter -
VS-MT-FB19.55 - - V-Mount - FB Conversion Adapter -
VS-FR15-38V/M52 - - F-Mount - Focus Ring -
VS-FR15-40V/M52 - - F-Mount - Focus Ring -
VS-FR44-38V/M52 - - F-Mount - Focus Ring -
VS-EXR5/M52 - - F-Mount - Extention Tube -
VS-EXR10/M52 - - F-Mount - Extention Tube -
VS-EXR30/M52 - - F-Mount - Extention Tube -
VS-EXR4.4-/F - - F-Mount - Extention Tube -
