VL-T-AB Series

Trident Bar Light

TRIDENT

Brightness: Built-in brightness control function.
Compliant: RoHS compliant.
Design: T-Slot design.
Over Drive: Built-in over drive function. (Duration max. 20mS, duty cycle 10%).
Suitable: Suitable for various applications.
Trigger: Trigger input is available for both PNP / NPN.

TECHNICAL DATA

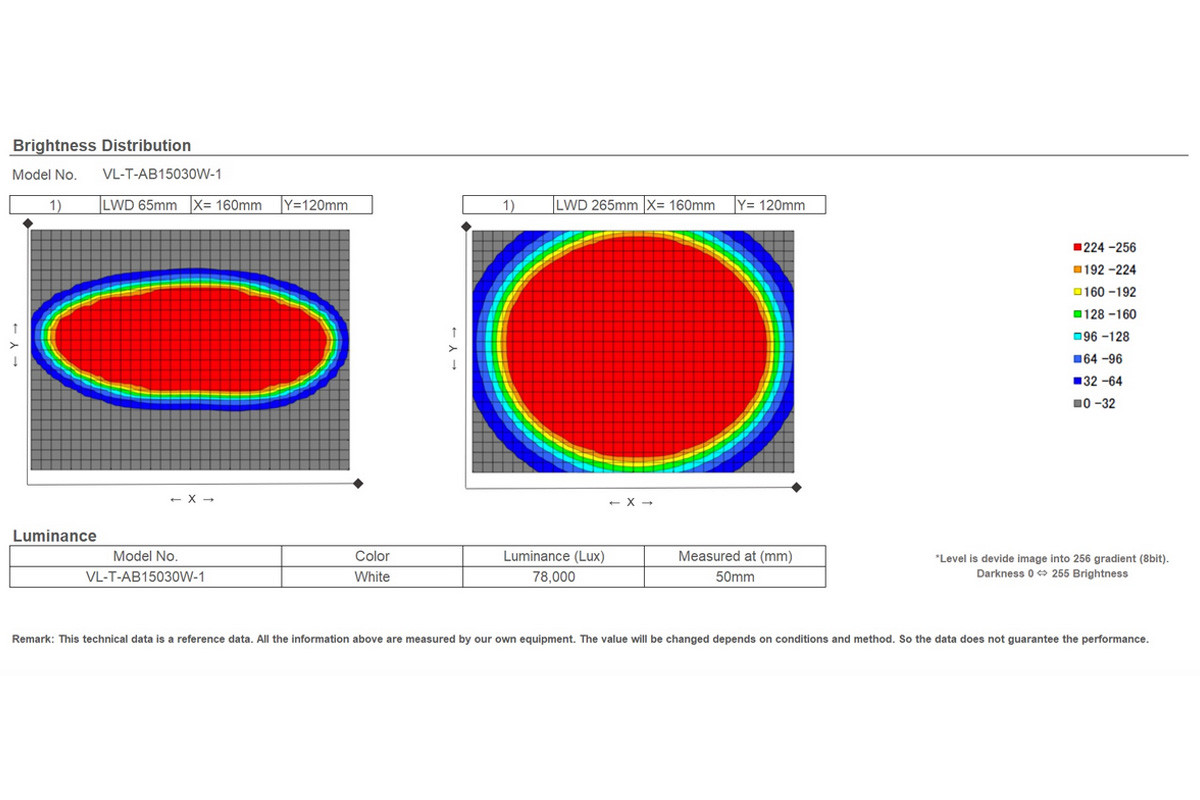

Trident series require total 4pin connection to turn on the light. Over drive mode will be activated when input 0V to pin No.5. Brightness value of following data is as of continuous mode.

Mostra Modelli

▼

Codice variante	Color	Connector	Dimension of Lighting Area (mm)	Operating Current (Continuous Mode / Strobe Mode)	Operating Voltage	Pdf	Spec
VL-T-AB15030R-1	Red	M12 (5Pin Male)	150 x 30	0.35A / 1.0A	DC24V
VL-T-AB15030W-1	White	M12 (5Pin Male)	150 x 30	0.3A / 1.0A	DC24V
VL-T-AB30030R-1	Red	M12 (5Pin Male)	300 x 30	0.7A / 2.0A	DC24V
VL-T-AB30030W-1	White	M12 (5Pin Male)	300 x 30	0.6A / 2.0A	DC24V
VL-T-AB45030R-1	Red	M12 (5Pin Male)	450 x 30	0.9A / 3.0A	DC24V
VL-T-AB45030W-1	White	M12 (5Pin Male)	450 x 30	0.9A / 3.0A	DC24V

Modelli 1 - 6 di 6 Modelli
